Các nhà sản xuất bán buôn máy hấp vòng dài quy mô lớn sản xuất hàng dệt kim và sản xuất máy hấp hoàn chỉnh mô hình
_x000D_

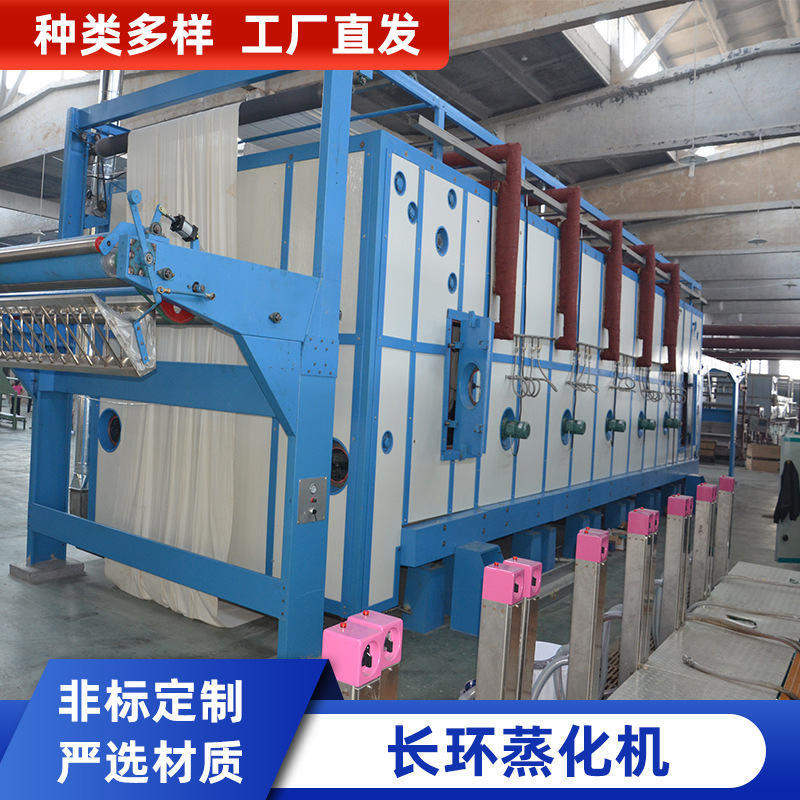

长环蒸化机系列
_x000D_
一、用途
_x000D_
本机供毛毯、毛巾、珊瑚绒类织物,以及棉,涤,混纺等织物进行印花后的汽蒸固色用。
_x000D_
织物呈长环悬挂状,为单面接触松式传送。
_x000D_
二、技术特性
_x000D_
1、积木式组合,可根据不同的产品和工艺要求,任意组合机器流程。
_x000D_
2、公称幅宽:1600-3200mm根据用户要求
_x000D_
3、容布量:140m、210m、280m、350m。
_x000D_
4、工作温度:100-105℃(蒸汽); 100-180℃(蒸汽、导热油)。
_x000D_
5、交流变频拖动,机械车速:10-50m/min根据工艺设定。
_x000D_
6、织物在汽蒸过程中长环悬挂,全松弛,无张力,在自由状态下完成汽蒸发色工艺。
_x000D_
7、成环主链条在公转的同时,挂布杆均匀地自转,避免了挂杆烫痕印,蒸化均匀一致。
_x000D_
8、蒸箱内部汽流对流循环、加湿控制、温度控制、环长控制、时间控制等确保蒸化的质
_x000D_
量,颜色鲜艳,色牢度高。
_x000D_
_x000D_
_x000D_

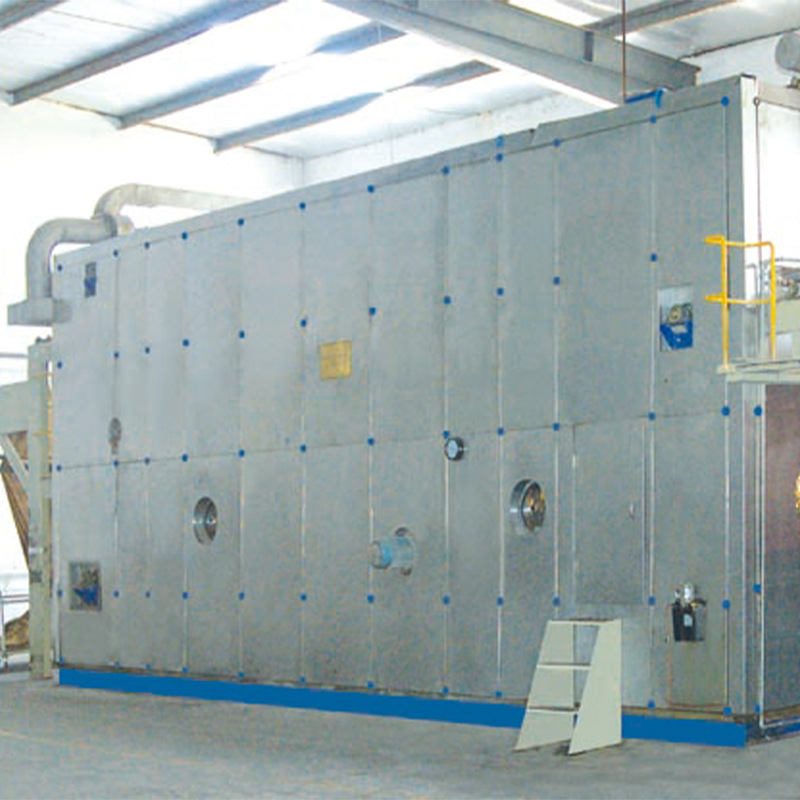

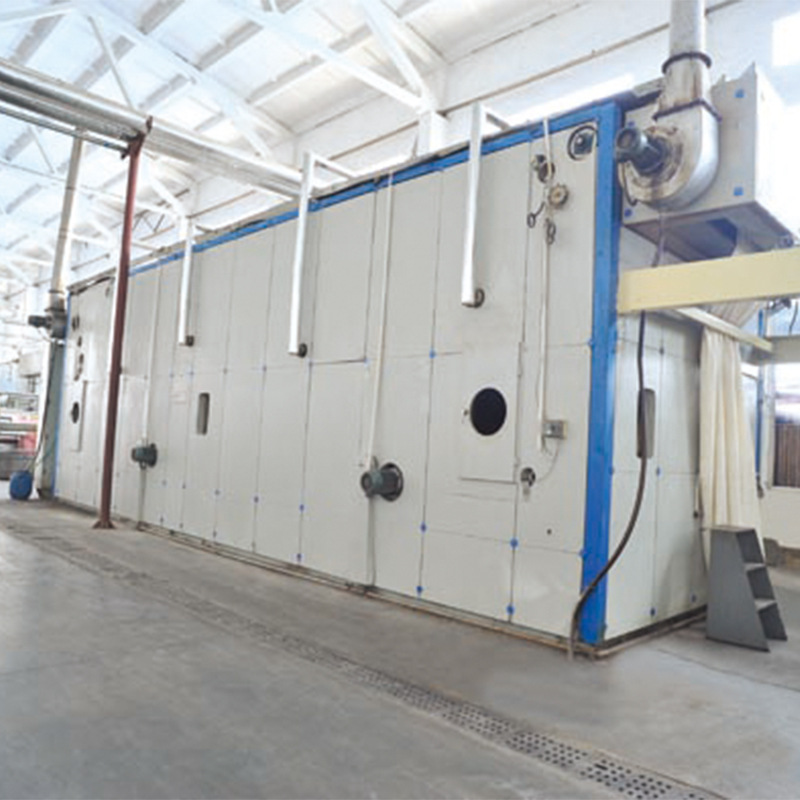

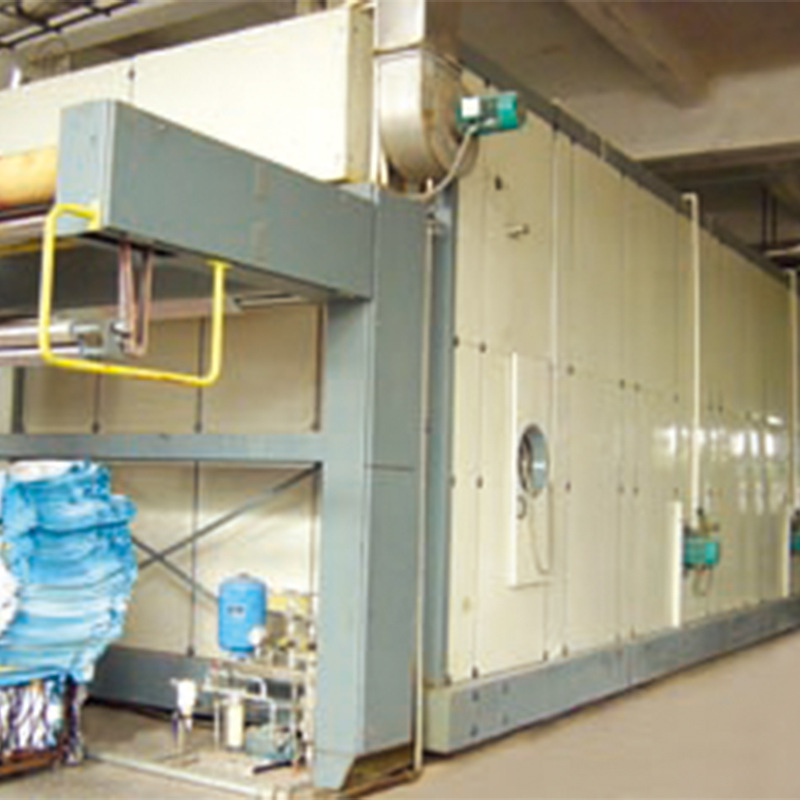

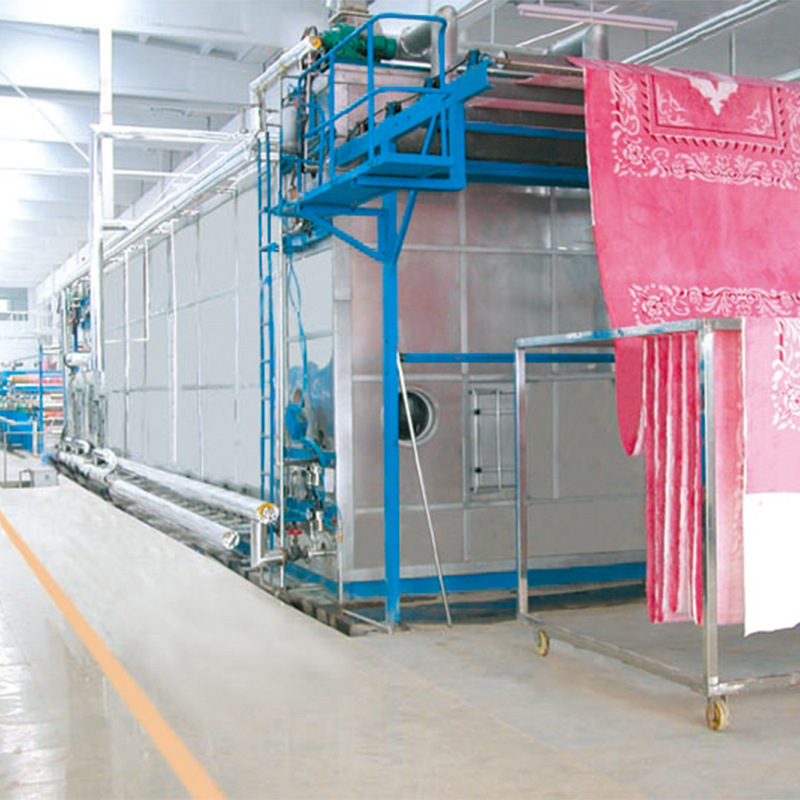

Long Loop Steam Ager series
_x000D_
_x000D_
1.Application
_x000D_
The machine for blankets, towels, coral velvet fabric, and cotton, polyester, blended fabric printing fixation with post-steaming.Elongated ring-like fabric hanging, loose style for the single access transmission.
_x000D_
2.Technical features
_x000D_
(1).Modular mix of products and processes according to different requirements, any combination of machine processes.
_x000D_
(2).Nominal width :1600-3200mm according to user requirements
_x000D_
(3).Yung cloth volume: 140m, 210m, 280m, 350m.
_x000D_
(4).Operating temperature :100-105℃ (steam); 100-180℃ (steam thermal oil).
_x000D_
(5).AC Variable Frequency Drive, mechanical speed :10-50m / min under the process set.
_x000D_
(6).In the steaming process of the fabric hanging from the ring, all loose, no tension, vapor in the free state of complete evaporation of color technology.
_x000D_
(7).Into the ring main chain in the revolution, while the rotation of hanging cloth bar evenly to avoid hot mark hanging rod India, even aging.
_x000D_
(8).Steamer steam flow within the convection cycle, humidification control, temperature control, loop length control, time control to ensure the quality of steaming The amount of bright color fastness.
_x000D_
_x000D_
………………………………………………………………………………………………………………………………………………………………………………………………………………………………………………………………………………………………..
Mã số:/ Nhãn hiệu: HK Loại: Thiết bị hoàn thiện in và nhuộm Ứng dụng: Máy hấp vòng dài Model:/ Chế biến Tùy chỉnh: Có Kích thước: Tham khảo dịch vụ khách hàng để cung cấp độc quyền xuất khẩu xuyên biên giới: Không có Số thứ tự:/
