(JK Jianke) Máy co rút sơ bộ vải quy mô lớn, máy sấy khô vải
_x000D_
内部配件
_x000D_
_x000D_

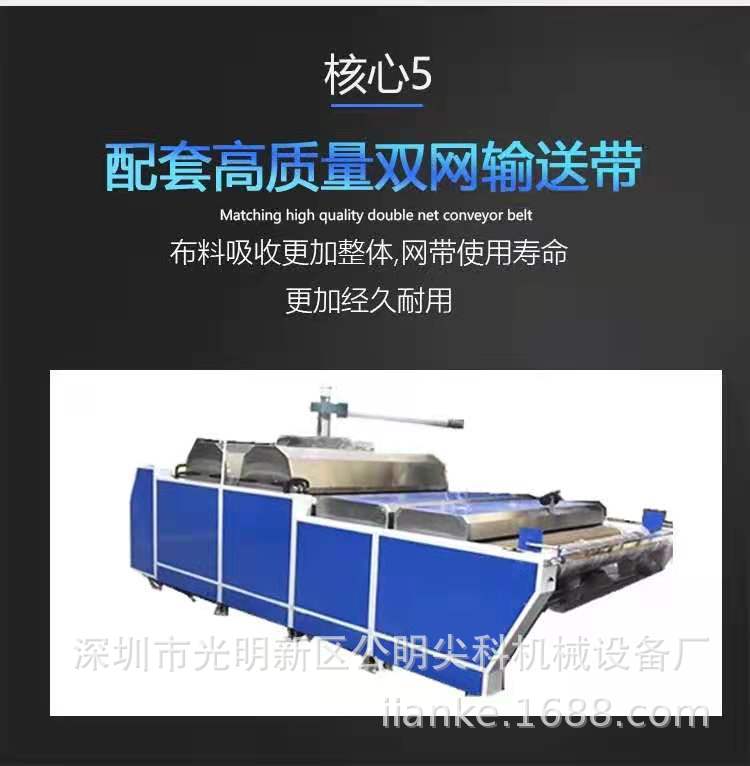

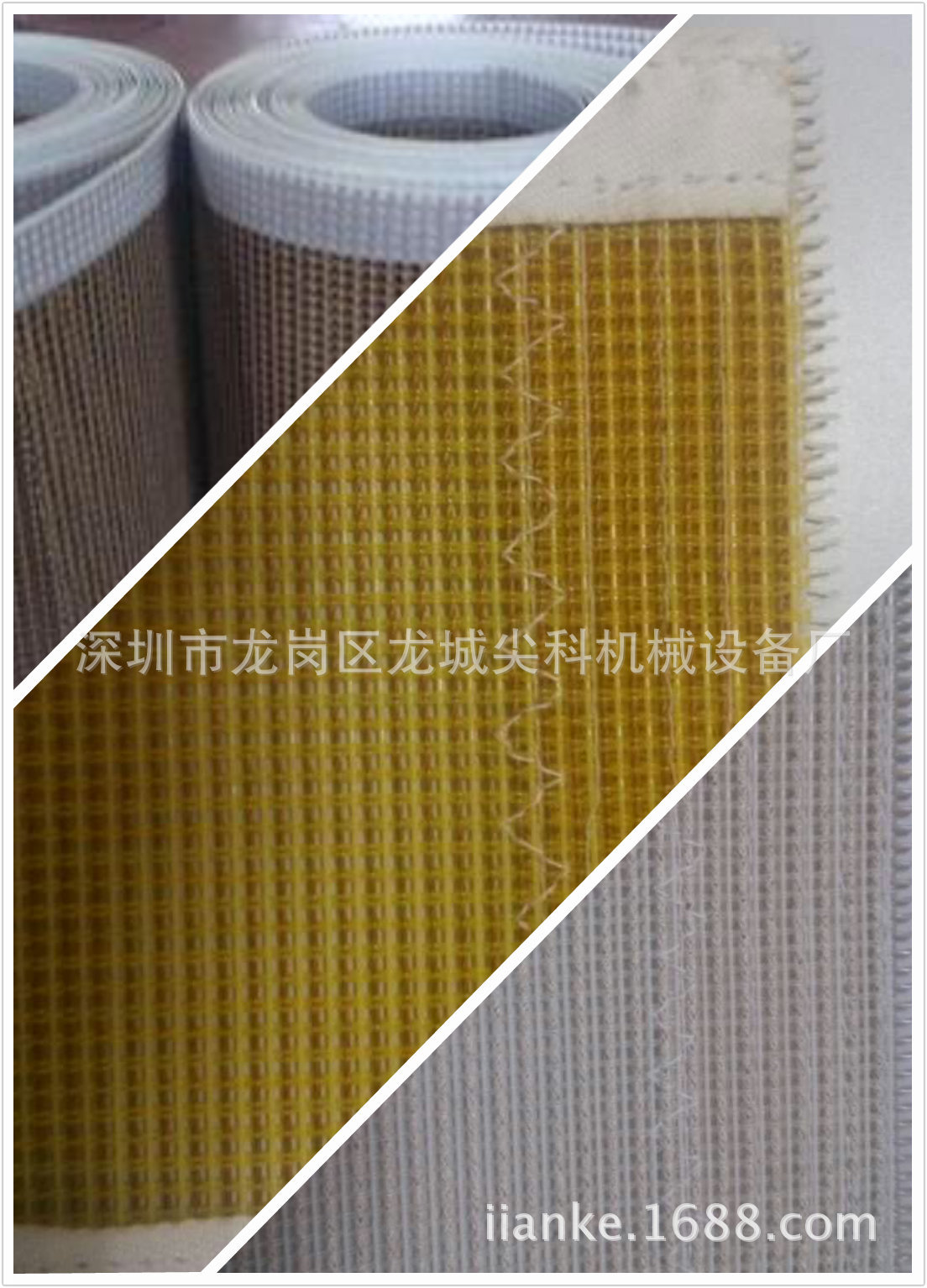

网带
_x000D_
_x000D_
_x000D_
_x000D_
使用电压 _x000D_ |
_x000D_
3P/220V9KW _x000D_ |
_x000D_
预缩速度 _x000D_ |
_x000D_
0~20Y/min _x000D_ |
_x000D_
加工宽度 _x000D_ |
_x000D_
2200mm _x000D_ |
_x000D_
蒸汽压力 _x000D_ |
_x000D_
Max 6kg _x000D_ |
_x000D_
蒸汽用量 _x000D_ |
_x000D_
100Kg/h _x000D_ |
_x000D_
加温预热方式 _x000D_ |
_x000D_
电、蒸汽 _x000D_ |
_x000D_
加温干布方式 _x000D_ |
_x000D_
电、蒸汽 _x000D_ |
_x000D_
收布方式 _x000D_ |
_x000D_
叠布、卷布 _x000D_ |
_x000D_
机身尺寸 _x000D_ |
_x000D_
4600*256000*1800mm _x000D_ |
_x000D_
_x000D_
_x000D_
产品性能:
_x000D_
1、本机采用蒸汽预缩,电热烘干区设计,具有调速功能,可根据实际预缩需要调整预缩速度;
_x000D_
2、设有电眼监控放布功能;
_x000D_
3、所有中心预缩功能区采用高热效应材料制作;
_x000D_
4、预缩蒸汽均匀,温度一致,使布料预缩效果更好;
_x000D_
5、外观设计大方。
_x000D_
产品性能:
Product performance:
1、本机采用蒸汽预缩,电热烘干区设计,具有调速功能,可根据实际预缩需要调整预缩速度;
1, the machine adopts steam pre shrinking, design electric drying area, has the timing function, according to the actual pre shrinking need to adjust the shrinkage rate;
2、设有电眼监控放布功能;
2, equipped with electronic monitoring put cloth function;

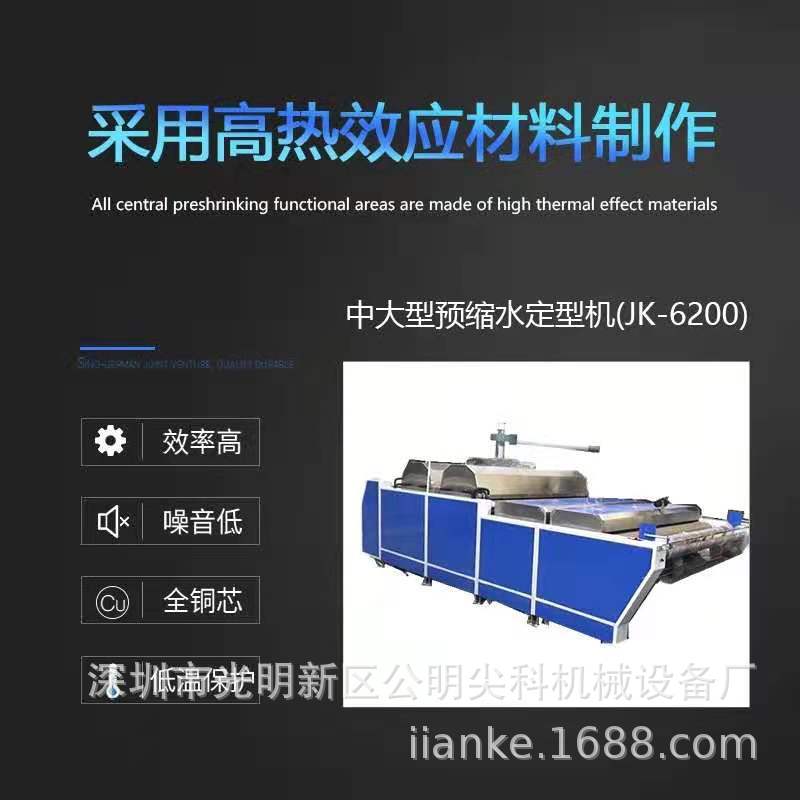

3、所有中心预缩功能区采用高热效应材料制作;
3, all center preshrinking function area with high heat effect material;
4、预缩蒸汽均匀,温度一致,使布料预缩效果更好;
4, pre shrinking steam temperature uniform, consistent, so that the fabric pre shrinkage effect is better;

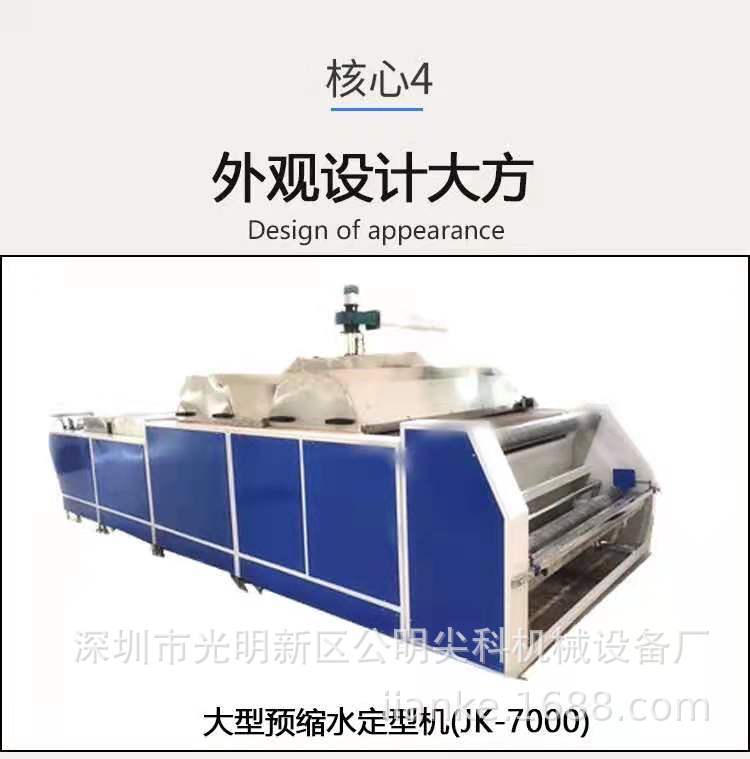

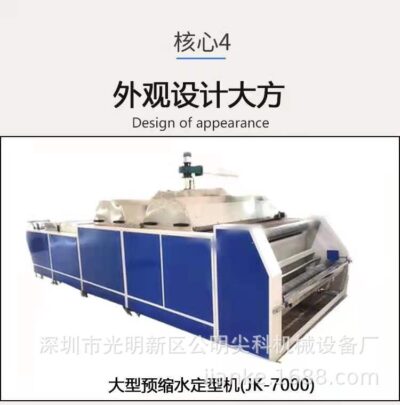

5、外观设计大方。
5, design of appearance.
技术参数:
Technical parameters:
使用电压 3P/380V24KW
The use of voltage 3P/380V24KW
预缩速度 0~20Y/min
The shrinking rate of 0~20Y/min
加工宽度 2200mm
Working width 2200mm
蒸汽压力 Max 6kg
Max steam pressure 6kg
蒸汽用量 100Kg/h
The steam consumption of 100Kg/h
加温预热方式 电、蒸汽
Electric heating, steam heating mode
加温干布方式 电、蒸汽
Electric, steam heating dry cloth
收布方式 叠布、卷布
The cloth laminated cloth, cloth
机身尺寸 4000*2500*2800mm
Body size in 4000*2500*2800mm
_x000D_
用途:减少在缝制过程中,由于布料受缝制整烫所产生的收缩。
防止做出来的衣服产生尺寸变化或变形。
使布料裁剪得以顺利进行。
使轻布及布面间能精密的结合,经预缩机定型之布料,无需考量布料裁剪缝制、整烫后的收缩,便于生产,又提高产 品之附加值。
_x000D_
特点:缩水加工是为了使未处理过之原布料柔软,并经过维纱斜度的调整,安定原布尺寸。
缩水加工后的原布尺寸,于缝制时不易产生布料缩皱而且易于缝制,使您在设计衣服及免除考虑在制作中所产生布料伸展及收缩的问题。
经缩水加工后的原布尺寸稳定,手感极佳,且经再次整烫也不易缩水,此种处理使产品的品质达到最佳,并且附加值得到增加。
此缩水机是现代使用CAD及CAM自动化设备必备的机器。
_x000D_
_x000D_
Purpose: to reduce in the sewing process, since the fabric by sewing ironing the contraction.
Keep the clothing’s size changes or deformation.
The cloth cutting smoothly.
Combine light cloth and cloth to be precise, the shrinking cloth machine setting, without consideration of the cloth cutting and sewing, ironing shrinkage, easy production, and improve product added value.
Characteristics: the shrinkage processes in order to make the unprocessed raw soft cloth, and after the yarn inclination adjustment, the original fabric size stability.
Shrink the original cloth after processing dimensions, not easy to produce cloth for sewing shrinkage and easy to sew, enable you to design clothes and avoid considering produced cloth stretch and contract problems in production.
The original stable, cloth size shrink after processing the feel good, and once again the ironing is not easy to shrink, such that the quality of the products reach the best, and to increase the added value.
This machine is used by modern CAD and CAM automation equipment necessary machine.
_x000D_
问题1,公司产品在本地没有经销商和办事处,我们该如何合作呢!
_x000D_
回答,您好 ,公司在部分地区发展了代理商,在没有代理商经销商的地方,公司根据客户的需求来选择产品,在每款产品发往贵地时,多会严格把关,在产品里我们将配套一部分易损配件,为预防贵公司在保修期间,出现小问题,我们将配套接触器 控制器 玻璃管,探针,等配件,一律免费配送! 一年出现小问题公司将一对一指导操作,出现产品质量问题,公司将全权负责,一切费用公司负责,第一时间重新发货或者退款!
_x000D_
_x000D_
问题2 公司产品有没有合格的证书,等资料证明。
_x000D_
回答, 公司是注册的正规公司,锅炉,有合格证书,资料证明,等 锅炉发货柜里我们多将有这些资料!节能器我们有自己的专利证书,内胆有合格证明!
_x000D_
_x000D_
问题3 节能器是否节能!买回没效果怎么办?
_x000D_
回答 针对客户的这一问答我们得详细回答 顾客在买产品前,公司将会一对一的解释节能器的原理,操作,售后等问题,只要客户根据我们的说明使用,如果没有达到效果,公司将收回产品,不收任何费用,物流费用公司报销!
_x000D_
_x000D_
问题4 缩水机 锅炉 等产品 有没有达到宣传所说的效果!
_x000D_
回答 公司不做虚假宣传,用心办事,以质量服人!
_x000D_
_x000D_
Mức độ tự động hóa: Hoàn toàn tự động Nơi xuất xứ: Thâm Quyến Mã sản phẩm: 6200 Loại: Máy co nhãn hiệu: JK Mục đích: Thiết bị co và thiết lập Đối tượng: Vải Loại sản phẩm: Mới Mẫu mã: 6200 Số đặt hàng: 6200 Bí danh sản phẩm: Xử lý máy co Tùy chỉnh: Có hoặc không Xuyên biên giới Cung cấp độc quyền cho xuất khẩu: Không Kích thước (dài*rộng*cao): 4000*3800*3000mm Trọng lượng máy: 700 Loại vải áp dụng: Vải dệt kim Loại: Thiết bị may
