Máy dán quy mô lớn, con lăn kép, máy ép kép, áo sơ mi cao cấp, bộ vest, máy ghép vải quần áo, thiết bị quần áo, điều khiển nhiệt độ bốn giai đoạn
_x000D_
_x000D_
_x000D_
_x000D_
_x000D_
型 号Model _x000D_ |
_x000D_
HP-2000AES _x000D_ |
_x000D_
驱动功率Driving Power _x000D_ |
_x000D_
400W _x000D_ |
_x000D_
加热功率Heating Power _x000D_ |
_x000D_
3P 380V 60kw _x000D_ |
_x000D_
粘合压力Bonding Pressure _x000D_ |
_x000D_
0-0.4Mpa(0-4kg/c㎡ ) _x000D_ |
_x000D_
熔合温度Fusion Temperature _x000D_ |
_x000D_
0-220℃ _x000D_ |
_x000D_
胶带速度Tape Speed _x000D_ |
_x000D_
0-20m/min无极调节Continuously Adjust _x000D_ |
_x000D_
加压方式Pressurized Method _x000D_ |
_x000D_
气动双辊双压Air Double Roll Pressure Style _x000D_ |
_x000D_
粘合宽度Bonding Width _x000D_ |
_x000D_
0-1900mm _x000D_ |
_x000D_
外型尺寸Dimensions _x000D_ |
_x000D_
3950×2580×1600 ( 长×宽×高 )(Length × width × height ) _x000D_ |
_x000D_
重 量Weight _x000D_ |
_x000D_
1350kg _x000D_ |
_x000D_
_x000D_
_x000D_
产 品 功 能 用 途
_x000D_
_x000D_

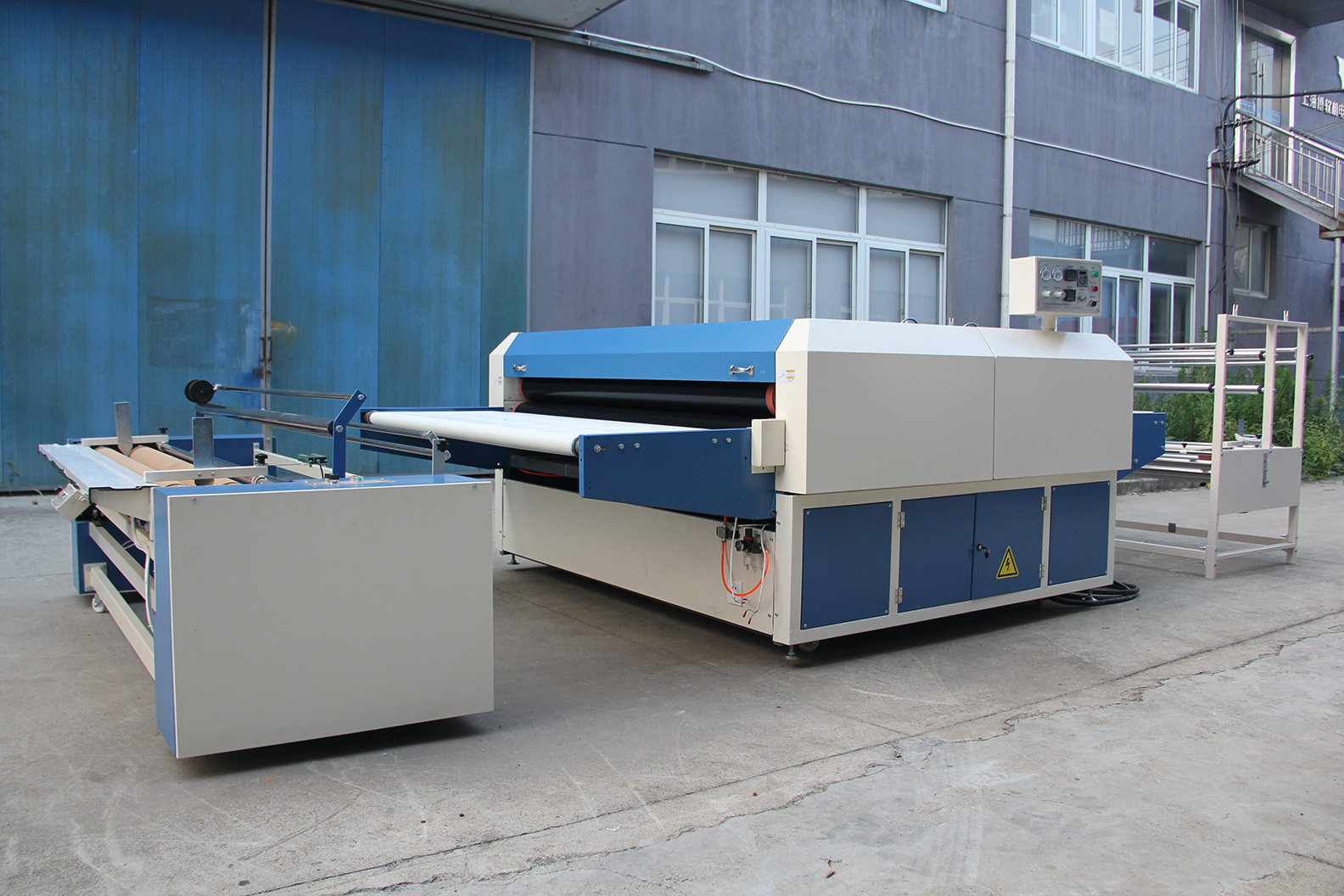

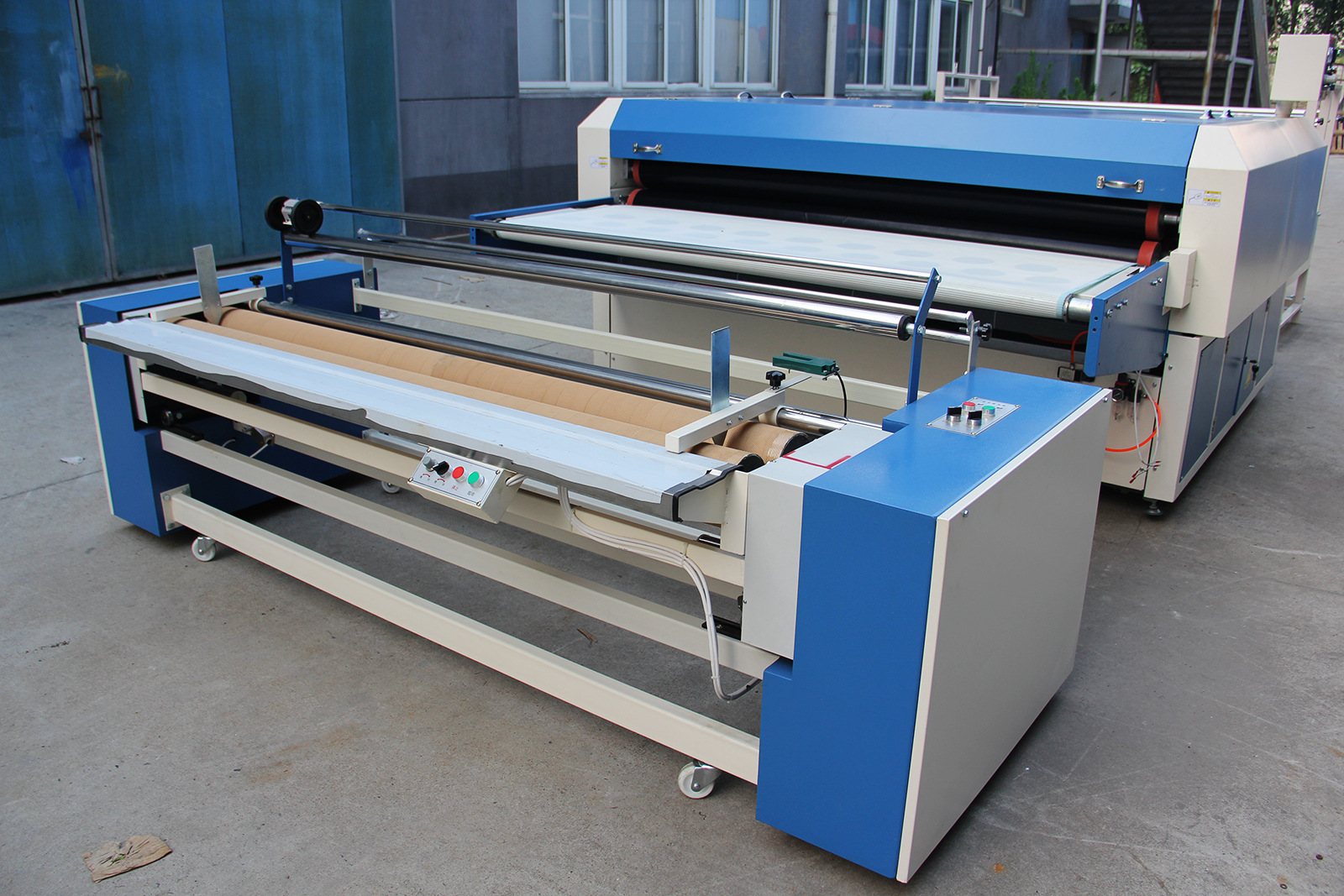

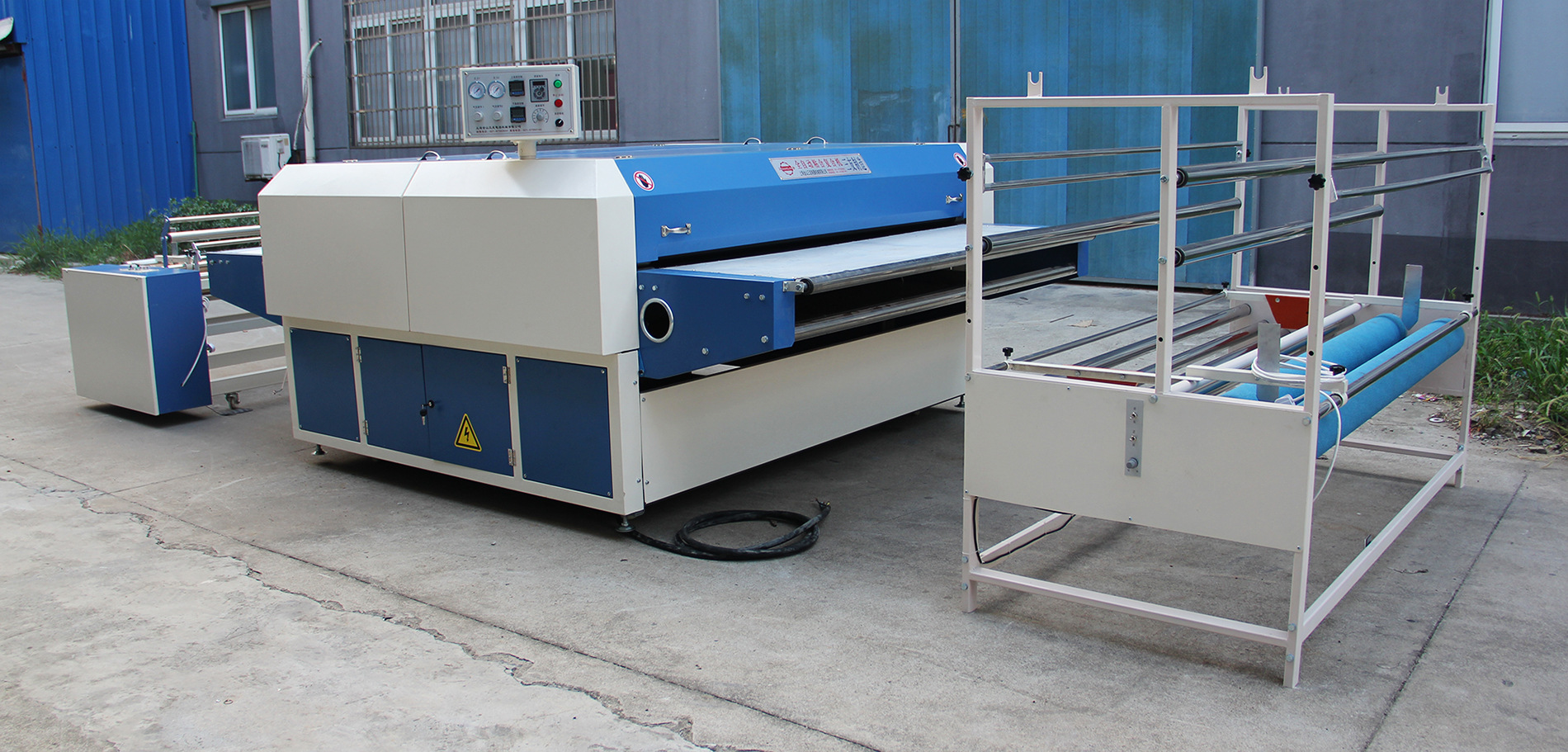

HP-2000AES气动型热熔粘合机是服装生产中粘合衬与面料粘合的理想设备。同时,还能用于各类面料、里料缩水过程中的烘干烫平,可一机多用,故该机是现代服装生产厂必不可少的专业设备。
_x000D_
_x000D_
HP-2000AES pneumatic hot melt bonding machine is the ideal equipment for adhesive lining and fabric bonding in clothing production. At the same time, it can also be used for drying of various types of fabrics, lining shrinking process, and can be a machine for a variety of uses. so this machine is an essential professional equipment for modern garment manufacturing plants.
_x000D_
_x000D_
_x000D_
1、温度均匀,加温区各部温差不大于5℃;
_x000D_
Features: 1. Temperature uniformity, temperature difference between the various parts of the heating zone is not greater than 5 °C.
_x000D_
2、全新采用气动压力,硅胶辊压力稳定,在胶带全宽度范围内压力均匀;粘合效果好。
_x000D_
2. The new use of pneumatic pressure, silicon robber roller pressure is stable, the pressure within the full width of the tape evenly; bonding effect is good.
_x000D_
3、机械传动平稳,噪声小、最大噪声不超过65分贝;
_x000D_
3. Mechanical transmission is stable, low noise, maximum noise does not exceed 65 decibels;
_x000D_
4、具有停电手摇机构,保护胶带停电时不致烧损;
_x000D_
4. With a power cut mechanism, protection tape will not burn when the power outage.
_x000D_
5、温度、压力、速度可根据需要在规定范围内任意调整;上下加热区可根据需要分开控制
_x000D_
5. Temperature, pressure, speed can be arbitrarily adjusted within the required range; upper and lower heating zones can be controlled separately according to the requirement.
_x000D_
6、主要控制元件为进口器件,操作方便,机械电气维修简单。
_x000D_
6. The main control components is imported devices which is easily to operate. Mechanical and electrical maintenance is simple.
_x000D_
_x000D_
_x000D_
_x000D_
_x000D_
_x000D_
_x000D_
_x000D_
_x000D_
_x000D_
_x000D_
_x000D_
_x000D_
_x000D_
_x000D_
Mức độ tự động hóa: Hoàn toàn tự động Nơi xuất xứ: Thượng Hải Mã sản phẩm: HP-2000AES Loại: Máy kết dính Nhãn hiệu: Vàng Ứng dụng: Thiết bị kết dính Đối tượng: Vải Loại sản phẩm: Hàng mới Mẫu mã: HP-2000AES Số đặt hàng: HP-2000AES Bí danh sản phẩm: Tùy chỉnh gia công hỗn hợp: Có Kích thước (L*W*H): 4000*2580*1600 Trọng lượng máy: 1200 Loại vải áp dụng: Loại vải: Thiết bị trước khi may
